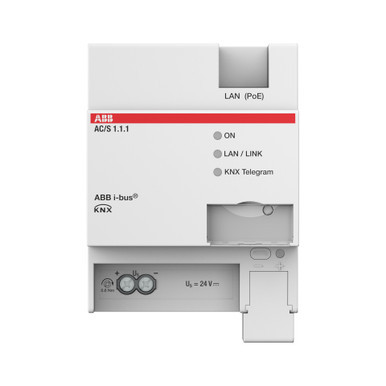

Automation Controller with pre-defined Automation Modules for a holistic Heating, Ventilation and Air Conditioning (HVAC) Automation Solution from Central HVAC to Room Automation to meet the Energy Efficiencies Objectives like EN 15232 or LEED. Automation Modules for example Schedule, Set Point Calculation, Heat Curve Calculation, Data Logging and Device Monitoring. Own Automation Modules can be created by a graphical Logic Editor. The Controller has an automatic generated web based User Interface to monitor and manage the KNX System.
The Engineering is done completely by the ETS. An additional external Software is not required.
| tipo di montaggio |
AMD |
| sistema bus EIB/KNX |
SI |
| accoppiamento bus incluso |
SI |
| larghezza in unità di suddivisione |
4 |
| altri sistemi bus |
Senza |
| modulo logico |
SI |
| Famiglia |
| Famiglia Di Sconto Codice |
BLD40A20
|
| Famiglia Di Sconto Descrizione |
SISTEMI KNX CLIMAECO
|
| Famiglia Statistica Codice |
N060
|
| Famiglia Statistica Descrizione |
COMPONENTI KNX - CLIMAECO
|
| Codici |
| Codice produttore |
2CDG110205R0011
|
| EAN Code |
4016779011808
|
| Gestione |
| Validità listino |
2026-03-01 00:00:00
|
